Solenoid valve for gas water heater 1 inch 110v

FOB Price:

US 5-50 / Piece

Min.Order Quantity:

1 Piece/Pieces

Supply Ability:

3000 Piece/Pieces per Day

Port:

Ningbo

Place of Origin:

Zhejiang, China (Mainland)

Payment Terms:

L/C,T/T,Western Union,Paypal

Brand:

solenoid valve gas water heater

Products Model:

PM-25

Products Details
Company Profile

Quick Details

Brand Name: solenoid valve gas water heater

Model Number: PM-25

Place of Origin: Zhejiang, China (Mainland)
Standard or Nonstandard: Standard
Structure: Control
Pressure: Low Pressure
Power: Solenoid
Material: Brass
Temperature of Media: Medium Temperature
Media: Air ,Gas ,Oil ,Water
Port Size: 1/8’ 1/4’ 3/8’ 1/2’ 3/4’ 1’ 2’
Form: plug and wire lead type
Operating Temperature: -5~80°C
Orifice: 5~50mm
type: normal colse
Working pressure: 0-1bar
Voltage: AC110V AC220V 24V DC 12V DC
Sealing materials: NBR ,VITON
For: Brass ,Aluminum
Body material: directly acting type

Packaging & Delivery

Packaging Details: Carton box for solenoid valve gas water heater
Delivery Detail: 5 days

Specifications

Solenoid valve for gas water heater 1 inch 110v
1. Normally closed ;
2. Low pressure ..

Solenoid valve for gas water heater 1 inch 110v

1. Normally closed

2. Low pressure

Specification

Pattern:	Two-port two-position
Principium:	directly acting type
Control mode:	normally close
Valve body:	brass ,stainless steel
Diaphragm material:	NBR: <80°C ,FKM: <150°C
Working pressure:	0~1bar
Max pressure:	5bar
Voltage:	AC220V AC110V DC12V DC24V
Medium:	Pipeline gas, liquefied petroleum gas, natural gas ect.
Application:	Low pressure normally gas control system

Model	Pipe	Orifice Diameter(mm)	Principium	CV	Body material	Seal	Work Pressure
PM-05	1/4"	5	direct acting type	0.65	Brass	NBR	0-1bar
PM-06	1/4"	6		0.8			0-0.7bar
PM-1002	1/4"	10		1.8			0-0.7bar
PM-1003	1/4"	10		1.8			0-0.7bar
PM-1004	3/8"	10		1.8			0-0.7bar
PM-15	1/2"	15		4.6			0-1bar
PM-20	3/4"	20		8.5			0-1bar
PM-25	1"	25		12			0-1bar
PM-35	1-1/4"	35		24			0-1bar
PM-40	1-1/2"	35		29			0-1bar
PM-50	2"	50		48			0-1bar

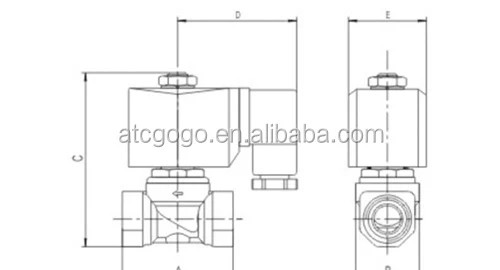

Dimensions

(mm)

Orifice(mm)	A	B	C	D	E
DN5-6	40	26	66	27	30
DN10	54	31	86	59.5	38
DN20	72	54	100	59.5	38
DN25	90	70	108	59.5	38
DN35/40	120	90	131	64.5	48
DN50	150	112	146	64.5	48
DN35/40(DC)	120	90	150	65.5	63
DN50(DC)	150	112	165	65.5	63

Materials of construction
Parts in contact with the medium
Valve of body	Brass	Aluminum
Seals	NBR ,EPDM ,FKM
Magnetic isolation pipe	SS304
Core	Stainless steel alloy
Spring	SS304
The shading	Copper
