Electric power saver induction brazing welding machine

Electric power saver induction brazing welding machine

FOB Price:

US 800-4500 / Set

Min.Order Quantity:

1 Set/Sets

Supply Ability:

500 Set/Sets per Year

Port:

Shanghai, Qingdao,Tianjin, Guangzhou or as you request

Place of Origin:

Henan, China (Mainland)

Payment Terms:

L/C,D/A,D/P,T/T,Western Union,MoneyGram,paypal,cash

Brand:

Yongda

Products Model:

WZP-40

Products Details
Company Profile

Quick Details

Brand Name: Yongda

Model Number: WZP-40

Place of Origin: Henan, China (Mainland)
After-sales Service Provided: Engineers available to service machinery overseas
name: induction brazing welding machine
Core parts: IGBT modules
coils: easy to change, for brazing different work piece
accessories: induction coils,foot switch
frequency: 15-30KHZ
heating rate: heating fast
Duty cycle: 100% full load ,24hours of continuous work
Packing: standard export wooden cases

Packaging & Delivery

Packaging Details: 1.Catoon or wooden cases(plywood) for packing induction brazing welding machine 2. Transport by air/sea/express/train
Delivery Detail: Within 5-7 days after 30% advance payment

Specifications

Electric power saver induction brazing welding machine

Product Description

Advantages of induction brazing welding machine

1. Light weight, small size and simple structure

2. Simple to operate, a few minutes are enough for user to learn it.

3. Simple to install, installation can be done by unprofessional person very easily.

4. Heating fast.

5. Different shapes and sizes of induction coils replaceable.

6. Multi-display functions, with displays of over current, over voltage, water lack, phase lack and so on, machine can be protected from destroys and can be repaired easily.

7. Advantages: the machine is with timer, so user can preset machine’s power, operating time, heating time and retaining time to realize a simple heating curve.

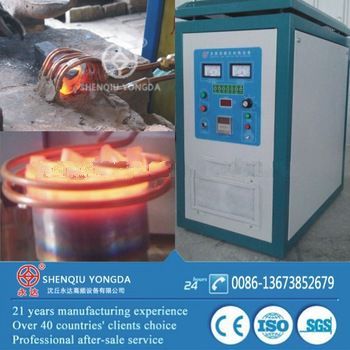

WZP-40 induction brazing welding machine snd control panel

Technial parameters of induction brazing welding machine

Model	Input voltage	Input current	Input power	Oscillation frequency	Cooling water pressure
WGH-IV-16	Single phase 220V	2-35A	3-16KW	15-50KHZ	0.1MPA
WZP-40	320-420V	2-40A	3-25KW	15-30KHZ	0.1MPA
WZP-60	320-420V	3-60A	3-35KW	15-30KHZ	0.2MPA
WZP-90	320-420V	4-90A	3-50KW	15-30KHZ	0.3MPA
WZP-120	320-420V	6-120A	3-65KW	15-30KHZ	0.3MPA

Applications of induction brazing welding machine

welding (brazing, silver soldering, brazing):

It is mainly through heating to a certain temperature to melt the solder, which, like the two kinds of metal material or different materials together, specific applications are as follows:

1, the welding of metal cutting tools: diamond tools, grinding, drilling, alloy saw blade, carbide turning tool, milling cutter, reamer, planer, drill bits and other woodworking welding;

2, the welding of metal mechanical parts: hardware bathroom products, refrigeration, copper fittings, lighting accessories, precision mold parts, metal handle, mixer, alloy steel and steel, steel and copper, copper and copper equivalent or dissimilar metals metal silver soldering, brazing;

3, composite solder pot is mainly used for round, square and other shaped surface stainless steel pot with three-layer aluminum brazing can also be used for other flat metal brazing.

4, an electric kettle (electric coffee pot) of hot plate welding is mainly used for stainless steel flat-bottomed, aluminum heating pipe with a variety of shapes between the brazing.

We are in exhibiton

Shenqiu Yongda High Frequency Equipment Co., Ltd. was founded in 1996,which belongs to Henan high-tech enterprise ,was located in No.65, Liufu Village Liufu town, Shenqiu County, Henan ,China .
We have international trade department in Zhengzhou city. East to international airport (CGO), besides, high way, high speed rail, transport is very convenient.

We professionally dedicated to R & D, produce and sale high frequency, super audio frequency, medium frequency induction heating equipment: WGH ,WZP and KGPS series, CNC quenching machine tool and automatic feeder machine etc. We adhering to the spirit of innovation, mean while strengthening cooperation with domestic well-known universities and research institutions.

Our machine is mainly used for heating metal, induction forging, hardening, brazing, annealing, melting , shrink fit, etc. other fields.

Yongda High frequency Equipment Co.,Ltd is the leader of induction heating field and biggest full solid state induction heating equipment manufacturer in China. Our products has got CE and ISO certification and hot sale at home and abroad. Up to now, we already exported to Europe, America, and Southeast Asia etc. other regions.
