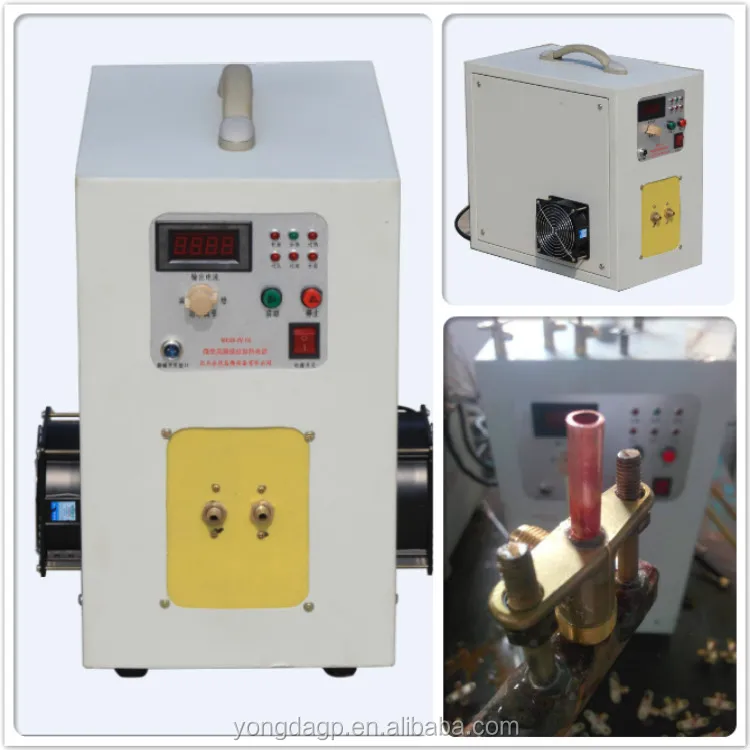

10KW diamond saw blade induction heating welding machine

10KW diamond saw blade induction heating welding machine

FOB Price:

US 1000-3000 / Set

Min.Order Quantity:

1 Set/Sets

Supply Ability:

500 Set/Sets per Year

Port:

Shanghai, Qingdao,Tianjin, Guangzhou or as you request

Place of Origin:

Henan, China (Mainland)

Payment Terms:

L/C,D/A,D/P,T/T,Western Union,MoneyGram,paypal,cash

Brand:

Yongda

Products Model:

WGH-IV-16

Products Details
Company Profile

Quick Details

Brand Name: Yongda

Model Number: WGH-IV-16

Place of Origin: Henan, China (Mainland)
Type: Other
Voltage: single phase 220V
Current: 3-30A
Rated Capacity: 30KVA
Rated Duty Cycle: 100%
Dimensions: 410*200*420mm
Weight: 28kg
Usage: brazing diamond saw blades,lathe tool etc.
Certification: ISO
After-sales Service Provided: Engineers available to service machinery overseas
name: induction heating welding machine
Power(W): 10KW
Oscillation frequency: 30-50KHZ
input current: 3-30A
Solder: Silver,copper etc.
Core parts: IGBT modules
Cooling method: Water cooling machine
usage: induction brazing carbide cutter,lathe tool etc.
Packing: standard export wooden cases
export market: Europe, Asia, South America, Oceania etc.

Packaging & Delivery

Packaging Details: 1.One wooden cases(plywood) for packing induction heating welding machine 2.Transport by sea or by air , by DHL express
Delivery Detail: Shipped in 7 days after payment

Specifications

10KW diamond saw blade induction heating welding machine

Company Information

Shenqiu Yongda High Frequency Equipment Co., Ltd. was founded in 1996, which belongs to high-tech enterprise in Henan Province,China. We are located in Shenqiu County, Zhoukou City. We professionally dedicated to R&D,production of HF,SSF,MF induction heating equipment,adhering to the spirit of innovation, mean while strengthening cooperation with domestic well-known universities and research institutions. We are the leader of domestic induction heating field, and got the ISO9001:2000 international quality management system certification in August, 2004. Up to now, we has 83 office in domestic ,products hot sale , and also exported to Europe,America,and Southeast Asia etc. other regions.

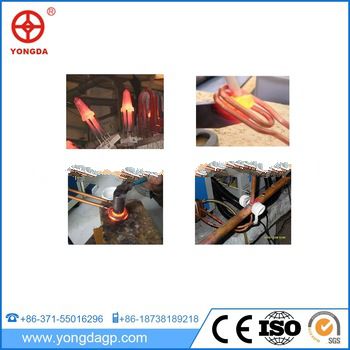

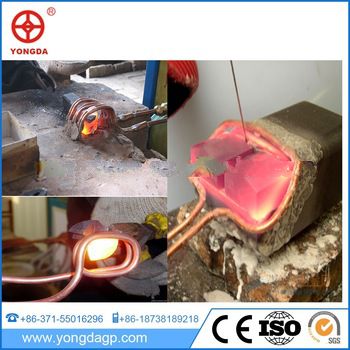

Products applications:
Metal forging,hardening,brazing, annealing, melting,shrink fit, thermal compound,plastic machine screw cylinder heating etc. other fields.

Product Description

Advantages of induction heating welding machine

•IGBT inversion technology

•Good quality of joint with uniform heating temperature

•High efficiency with heating fast

•24 hour non-stop working

•Be started up 100% at any load

•Environment friendly

Technial parameters of WGH-IV-16 induction heating welding machine

Model	WGH-IV-16 ( all-in-one machine)
Work power	Single phase 220 /50-60HZ
Input Voltage	180-240V
Output current	3-30A
Output power	3-10kw (power adjustable)
Oscillation frequency	10-50KHZ
Cooling water pressure	0.1 MPA
Size(LWH)	410×200×420mm
Weight	28KG
Cooling Water temperature protection point	below 50 degree
Accessories:	1.induction coils 2 piece ; 2.foot switch 1 piece, 3.water shunt valve 1 piece , 4.water hose (standard configuration) 5.user manual 1 piece

Application of induction heating welding machine

YONGDA Induction heating welding is a metal-joining process in which two or more metal items are joined together by melting and flowing a filler metal into the joint, the filler metal having a lower melting point than the adjoining metal.

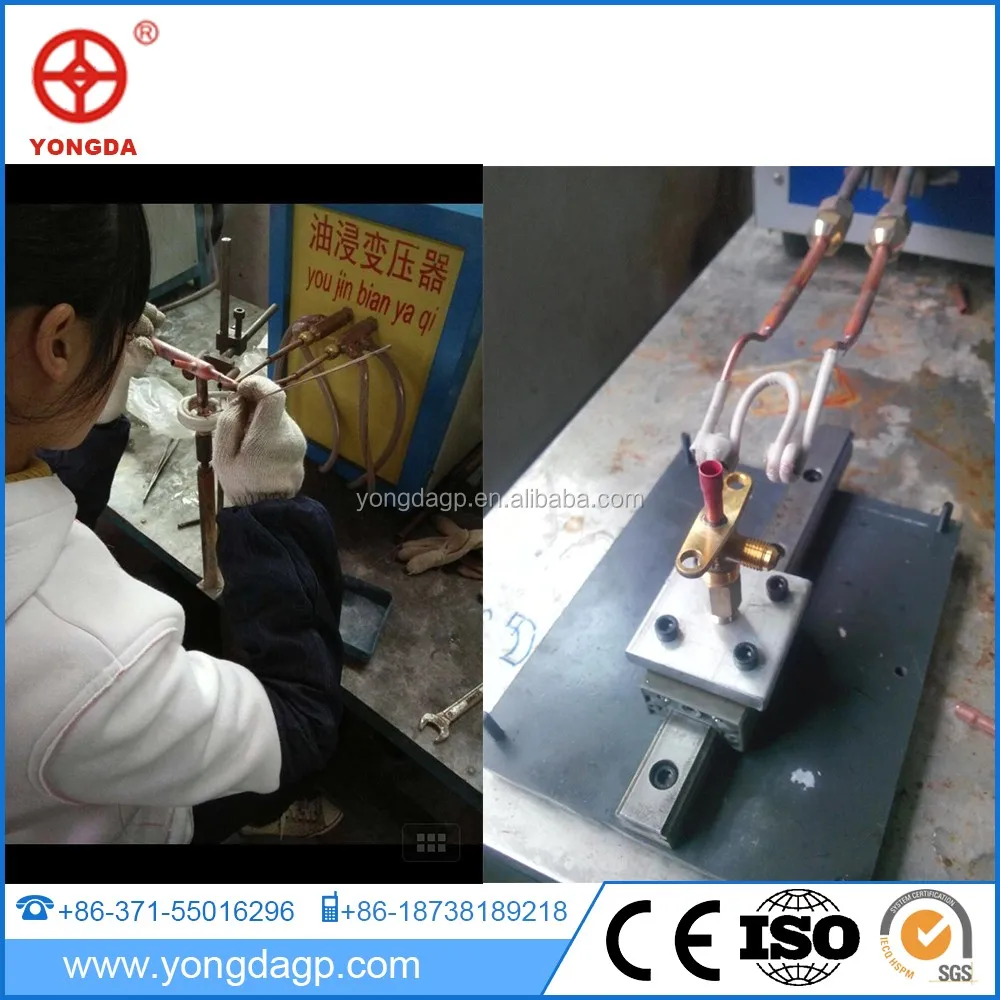

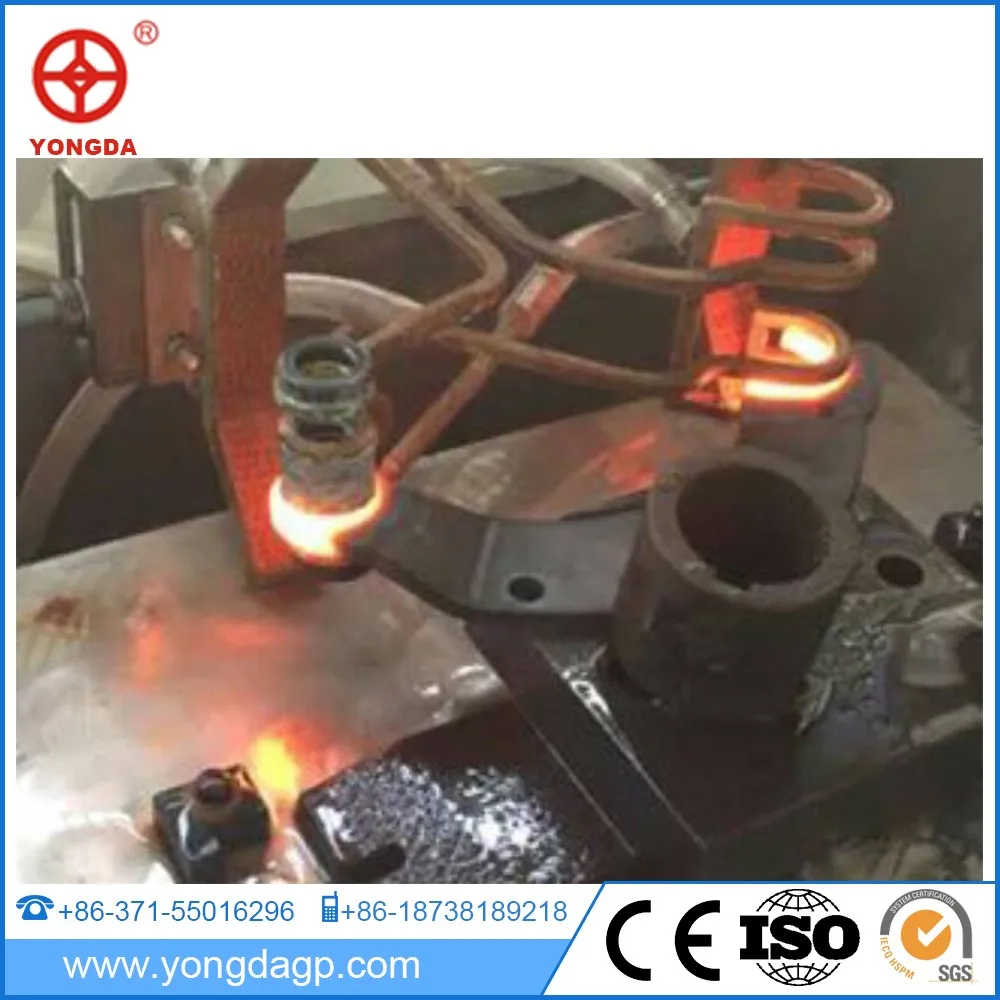

Can braze tools, saw blade, carbide tip, rotor, pipe etc.

We are in induction heating welding machine exhibition

Shenqiu Yongda High Frequency Equipment Co., Ltd. was founded in 1996,which belongs to Henan high-tech enterprise ,was located in No.65, Liufu Village Liufu town, Shenqiu County, Henan ,China .
We have international trade department in Zhengzhou city. East to international airport (CGO), besides, high way, high speed rail, transport is very convenient.

We professionally dedicated to R & D, produce and sale high frequency, super audio frequency, medium frequency induction heating equipment: WGH ,WZP and KGPS series, CNC quenching machine tool and automatic feeder machine etc. We adhering to the spirit of innovation, mean while strengthening cooperation with domestic well-known universities and research institutions.

Our machine is mainly used for heating metal, induction forging, hardening, brazing, annealing, melting , shrink fit, etc. other fields.

Yongda High frequency Equipment Co.,Ltd is the leader of induction heating field and biggest full solid state induction heating equipment manufacturer in China. Our products has got CE and ISO certification and hot sale at home and abroad. Up to now, we already exported to Europe, America, and Southeast Asia etc. other regions.
